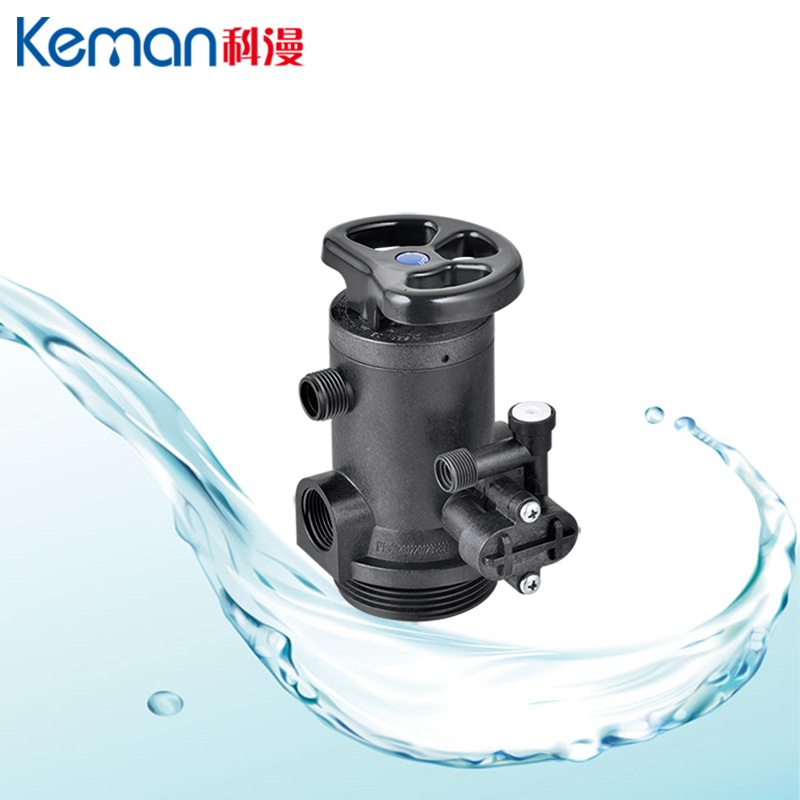

MSD2 2 ton Manual softener valve of Down flow type

1) Downflow type .Working Position : Service->Back Wash->Brine and slow Rinse->fast rinse->Refill->service.
2) Using ceramic movig valve disk, small rotation torque.
3) Abrasion resistance of sealing surface, outstanding and long -lived deal.
4) It could be operated with pressure directly.

Inlet 3/4''
Outlet 3/4''
Drain 3/4''
Base 2-1/2''
Riser pipe 1.05''OD
Water Capacity 2m³/h
Working Pressure 0.15-0.6MPa
Working Temperature 5-50℃

  • MSD2
  • Keman
  • 84212110
  • Material: PPO or ABS
  • Control mode: Manual
  • Capacity: 2 ton / hour
  • Applied range: Central water purification
  • Installation Method: Cabinet
  • Voltage: 0
  • Power: 0
Quantity:

Model number :  MSD2 :
2 ton manual Softener valve of Downflow type for water treatment systems .



Product introduce :

1) Valve Position  : Service->Back Wash->Brine and slow Rinse->fast rinse->Refill->service.

2) Using ceramic moving valve disk , small rotation torque.

3) Abrasion resinstance of sealing suface , outstanding and long-lived deal.

4) It could be operated with pressure directly.

5) MSD2, MSD4, MSD4-B, MSD10 are manual filter valves , easy operation .

6) ASD2, ASD4, ASD10 are automatic filter valves, LCD display or LED display .


Model: Manual Softener Valve MSD2           MSD4             MSD4-B MSD10
Working Position Filter -> Back Wash -> Fast Rinse -> Filter
Regeneration mode Manual
Inlet 3/4'' 1'' 1'' 2''
Outlet 3/4'' 1'' 1'' 2''
Drain 3/4'' 1'' 1'' 2''
Base 2-1/2'' 2-1/2'' 2-1/2'' 4''
Riser pipe 1.05'' OD 1.05'' OD 1.05'' OD 1.5''D-GB
Water Capacity 2m3/h 4m3/h 4m3/h 10m3/h
Working Pressure 0.15-0.6Mpa
Working Temperature 5-50 °C
Power Supply No need Power
