MSD10
Keman
84212110
| Quantity: | |
|---|---|
Model number : MSD10 :

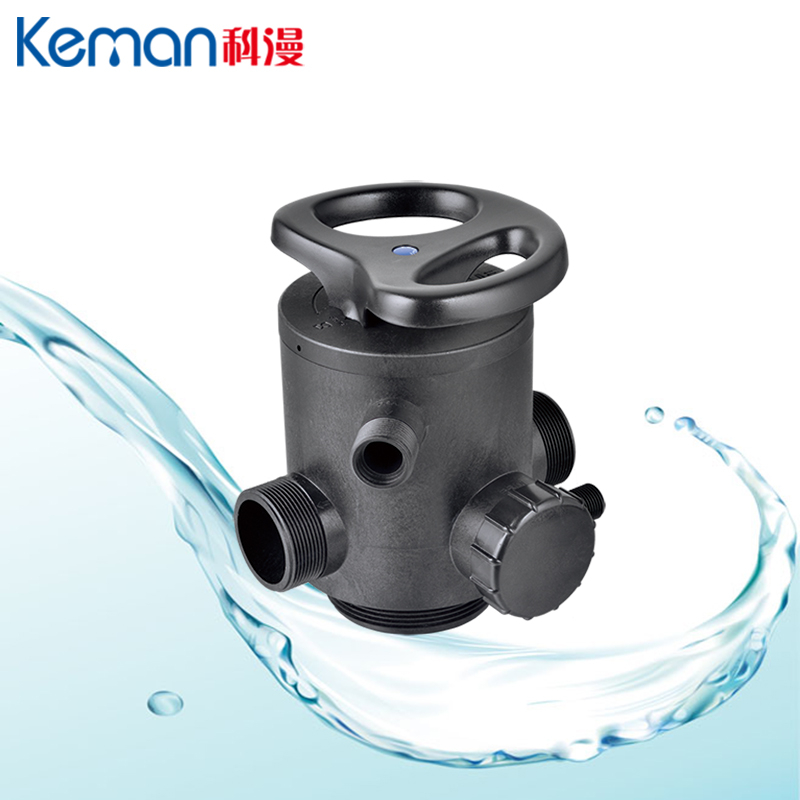

10 ton manual Softener valve of Downflow type for water treatment systems .
Product introduce ：
1) Valve Position : Service->Back Wash->Brine and slow Rinse->fast rinse->Refill->service.
2) Using ceramic moving valve disk, small rotation torque.
3) Abrasion resinstance of sealing suface , outstanding and long-lived deal.
4) It could be operated with pressure directly.
5) MSD2, MSD4, MSD4-B, MSD10 are manual filter valves, easy operation.
6) ASD2, ASD4, ASD10 are automatic filter valves, LCD display or LED display.
| Model: Manual Softener Valve | MSD2 | MSD4 | MSD4-B | MSD10 |
| Working Position | Filter ->Back Wash ->Fast Rinse ->Filter | |||
| Regeneration mode | Manual | |||
| Inlet | 3/4'' | 1'' | 1'' | 2'' |
| Outlet | 3/4'' | 1'' | 1'' | 2'' |
| Drain | 3/4'' | 1'' | 1'' | 2'' |
| Base | 2-1/2'' | 2-1/2'' | 2-1/2'' | 4'' |
| Riser pipe | 1.05'' OD | 1.05'' OD | 1.05'' OD | 1.5''D-GB |
| Water Capacity | 2m3/h | 4m3/h | 4m3/h | 10m3/h |
| Working Pressure | 0.15-0.6Mpa | |||
| Working Temperature | 5-50° C | |||
| Power Supply | No need Power | |||
Model number : MSD10 :
10 ton manual Softener valve of Downflow type for water treatment systems .
Product introduce ：
1) Valve Position : Service->Back Wash->Brine and slow Rinse->fast rinse->Refill->service.
2) Using ceramic moving valve disk, small rotation torque.
3) Abrasion resinstance of sealing suface , outstanding and long-lived deal.
4) It could be operated with pressure directly.
5) MSD2, MSD4, MSD4-B, MSD10 are manual filter valves, easy operation.
6) ASD2, ASD4, ASD10 are automatic filter valves, LCD display or LED display.
| Model: Manual Softener Valve | MSD2 | MSD4 | MSD4-B | MSD10 |
| Working Position | Filter ->Back Wash ->Fast Rinse ->Filter | |||
| Regeneration mode | Manual | |||
| Inlet | 3/4'' | 1'' | 1'' | 2'' |
| Outlet | 3/4'' | 1'' | 1'' | 2'' |
| Drain | 3/4'' | 1'' | 1'' | 2'' |
| Base | 2-1/2'' | 2-1/2'' | 2-1/2'' | 4'' |
| Riser pipe | 1.05'' OD | 1.05'' OD | 1.05'' OD | 1.5''D-GB |
| Water Capacity | 2m3/h | 4m3/h | 4m3/h | 10m3/h |
| Working Pressure | 0.15-0.6Mpa | |||
| Working Temperature | 5-50° C | |||
| Power Supply | No need Power | |||
