MF4
Keman
84212110
| Quantity: | |
|---|---|

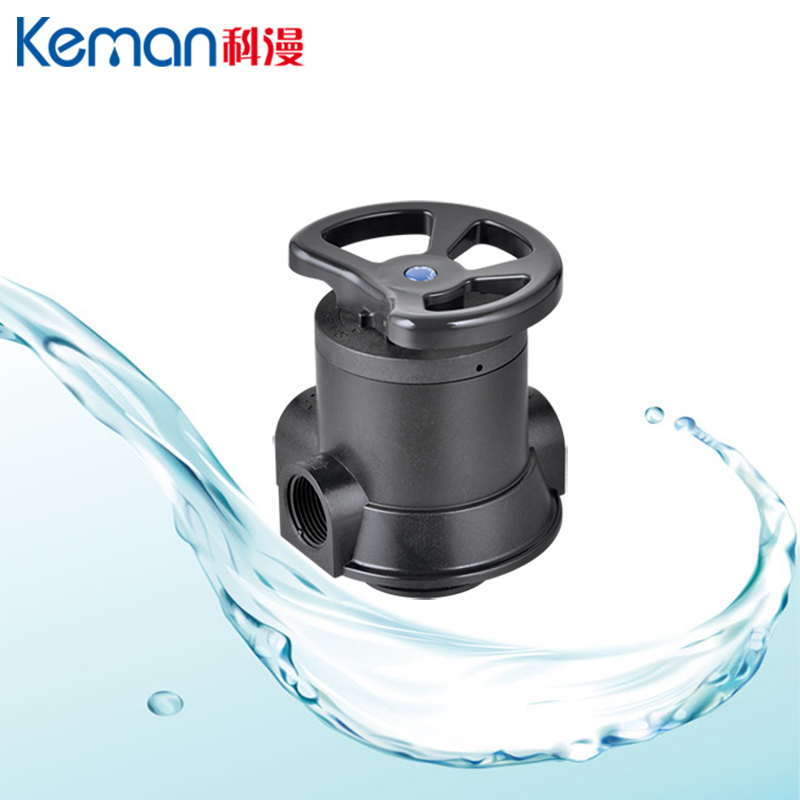

Model number : MF4 :
4 ton manual control valve/water filter control valve with different flow rate
Product introduce ：
1) Valve Position : filter -> Back Wash -> Fast Rinse -> Filter
2) Using ceramic moving valve disk, small rotation torque.
3) Abrasion resinstance of sealing suface, outstanding and long-lived deal.
4) It could be operated with pressure directly.
5) MF2, MF2-H, MF4, MF4-B, MF10 are manual filter valves, easy operation .
6) AF2, AF4, AF10 are automatic filter valves, LCD display or LED display .
| Model: Manual Filter Valve | MF2 | MF2-H | MF4 | MF4-H | MF10 |
| Working Position | Filter->Back wash->Fast rinse->Filter | ||||
| Regeneration mode | Manual | ||||
| Inlet | 3/4'' | 3/4'' | 1'' | 1'' | 2'' |
| Outlet | 3/4'' | 3/4'' | 1'' | 1'' | 2'' |
| Drain | 3/4'' | 3/4'' | 1'' | 1'' | 2'' |
| Base | 2-1/2'' | 2-1/2'' | 2-1/2'' | 2-1/2'' | 4'' |
| Riser pipe | 1.05'' OD | 1.05'' OD | 1.05'' OD | 1.05'' OD | 1.5''D-GB |
| Water Capacity | 2m3/h | 2m3/h | 4m3/h | 4m3/h | 10m3/h |
| Working Pressure | 0.15-0.6Mpa | ||||
| Working Temperature | 5-50 °C | ||||
| Power Supply | No need Power | ||||
