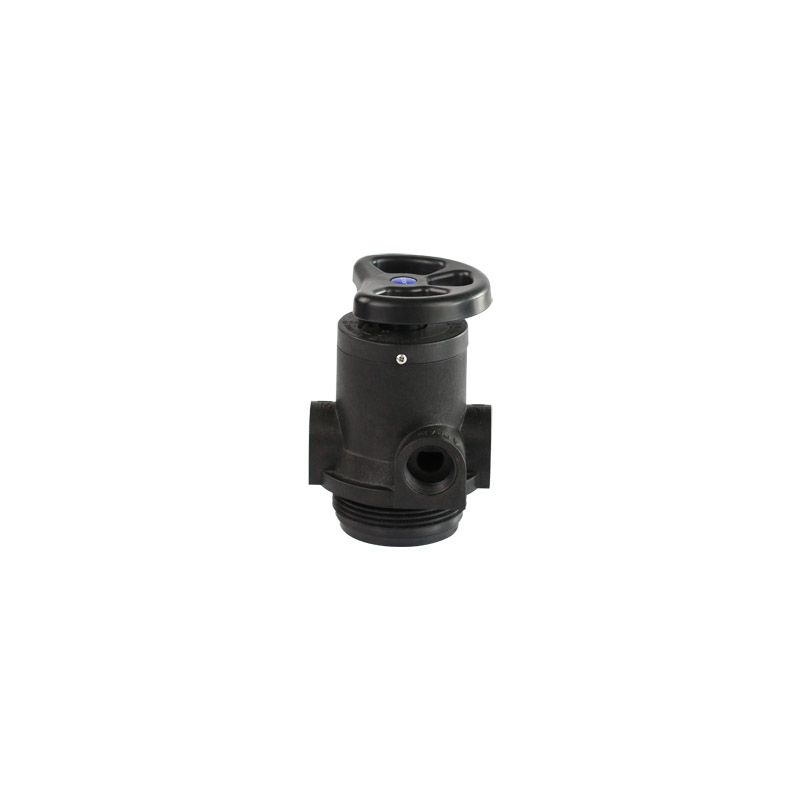

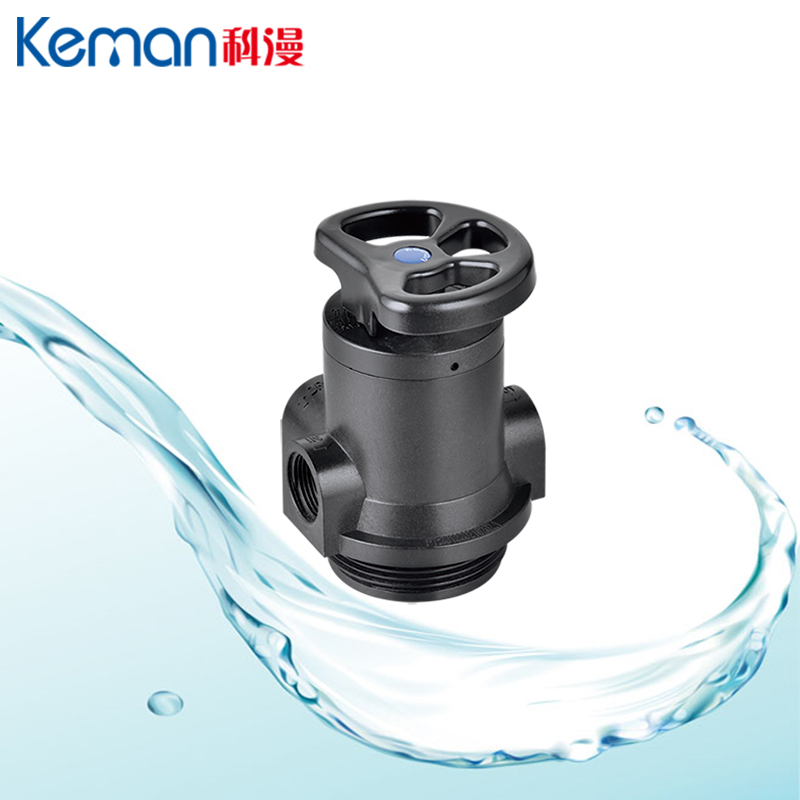

MF2 2 ton Manual water filter valve

1) Working Position : Filter->Back Wash->Fast Rinse->Filter
2) Using ceramic movig valve disk ,small rotation torque
3) Abrasion resistance of sealing surface,outstanding and long -lived deal .
4) It could be operated with pressure directly .

Inlet 3/4''
Outlet 3/4''
Drain 3/4''
Base 2-1/2''
Riser pipe 1.05''OD
Water Capacity 2m³/h
Working Pressure 0.15-0.6MPa
Working Temperature 5-50℃

  • MF2
  • Keman
  • 84212110
  • Material: PPO or ABS
  • Control mode: Manual
  • Capacity: 2 ton / hour
  • Applied range: Central water purification
  • Installation Method: Cabinet
  • Voltage: 0
  • Power: 0
Quantity:

Model number :  MF2 :
2 ton manual control valve/water filter control valve with different flow rate



Product introduce :

1) Valve Position  : filter -> Back Wash -> Fast Rinse -> Filter

2) Using ceramic moving valve disk , small rotation torque.

3) Abrasion resinstance of sealing suface , outstanding and long-lived deal.

4) It could be operated with pressure directly.

5) MF2, MF2-H, MF4, MF4-B, MF10 are manual filter valves, easy operation .

6) AF2, AF4, AF10 are automatic filter valves , LCD display or LED display .


Model: Manual Filter Valve MF2           MF2-H MF4             MF4-B MF10
Working Position Filter -> Back wash -> Fast rinse ->Filter
Regeneration mode Manual
Inlet 3/4'' 3/4'' 1'' 1'' 2''
Outlet 3/4'' 3/4'' 1'' 1'' 2''
Drain 3/4'' 3/4'' 1'' 1'' 2''
Base 2-1/2'' 2-1/2'' 2-1/2'' 2-1/2'' 4''
Riser pipe 1.05'' OD 1.05'' OD 1.05'' OD 1.05'' OD 1.5''D-GB
Water Capacity 2m3/h 2m3/h 4m3/h 4m3/h 10m3/h
Working Pressure 0.15-0.6Mpa
Working Temperature 5-50 °C
Power Supply No need Power

Working Principle :
filter valve

  • Applied range
自动软化阀-4
Company information :
厂房1181
Working shop:
3
Package and shipment :

packing and shipment-1
News :
展会图片
Certification :
6
