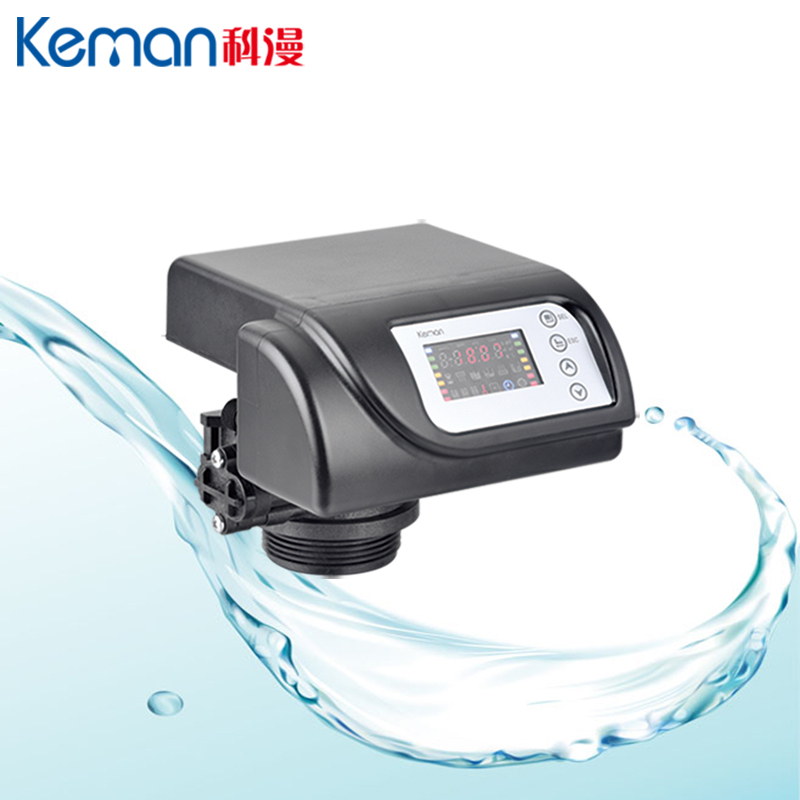

ASE2-LED 2 ton Automatic advance function type water softener valve with empty salt cabinet technology

1) Automatic advance water softener valve Upflow type with empty salt cabinet technology .
2) Upflow Working Position :
a) Service->Refill the softener water->Service->Back Wash->Upflow Brine and slow rinse->Fast rinse->Service .
b) Service->Back Wash->Upflow Brine and slow rinse->Fast rinse->Refill the softener water->Service .
3) Using ceramic movig valve disk ,small rotation torque.
4) Abrasion resistance of sealing surface,outstanding and long -lived deal.
5) It could be operated with pressure directly.

Inlet 1/2'' 3/4'' 1''
Outlet 1/2'' 3/4'' 1''
Drain 1/2''
Base 2-1/2''
Riser pipe 1.05''OD
Water Capacity 2m³/h
Working Pressure 0.15-0.6MPa
Working Temperature 5-50℃
  • ASE2-LED
  • Keman
  • 84212110
  • Material: PPO or ABS
  • Control mode: Automatic
  • Capacity: 2 ton / hour
  • Applied range: Water softener machine / industrial softener
  • Installation Method: Cabinet
  • Voltage: 220/110
  • Power: 18W
Quantity:

Model number :  ASE2-LED :

2 ton Automatic advanced function upflow water softener valve with refill the softener water and empty salt cabinet technology .



Product introduce :

1) Automatic advance water softener valve Upflow type  with empty salt cabinet technology .
2) Upflow Working Position :
      a) Service->Refill the softener water->Service->Back Wash->Upflow Brine and slow rinse->Fast rinse->Service .
      b) Service->Back Wash->Upflow Brine and slow rinse->Fast rinse->Refill the softener water->Service .

3) Using ceramic moving valve disk, small rotation torque.

4) Abrasion resinstance of sealing suface, outstanding and long-lived deal.

5) It could be operated with pressure directly.

6) ASS2 are automatic filter valves, LCD display or LED display.


Model: Automatic softener  Valve ASE2 -LCD/LED
Refilling type refill before regeneration refill after regeneration
Working Position
Service->Refill the softener water->Service->Back Wash->Upflow Brine and slow rinse->Fast rinse->Service .

Service->Back Wash->Upflow Brine and slow rinse->Fast rinse->Refill the softener water->Service .
Regeneration mode Automatic type
Meter Delay
Intelligent Meter Delay
Timer by day :  0-99 days
Timer by hours: 0-99 hours
Automatic type
Meter Delay
Meter immediate
Intelligent Meter Delay
Intelligent Meter Immediate
Timer by day :  0-99 days
Timer by hours: 0-99 hours
Inlet 1/2''  3/4''  1''
Outlet 1/2''  3/4''  1''
Drain 1/2''
Base 2-1/2''
Riser pipe 1.05'' OD
Water Capacity 2m3/h
Working Pressure 0.15-0.6Mpa
Working Temperature 5-50 °C
Power Supply AC100-240 / 50-60Hz     /       DC12V-1.5A
Working Principle :
ASE2

  • Applied range
