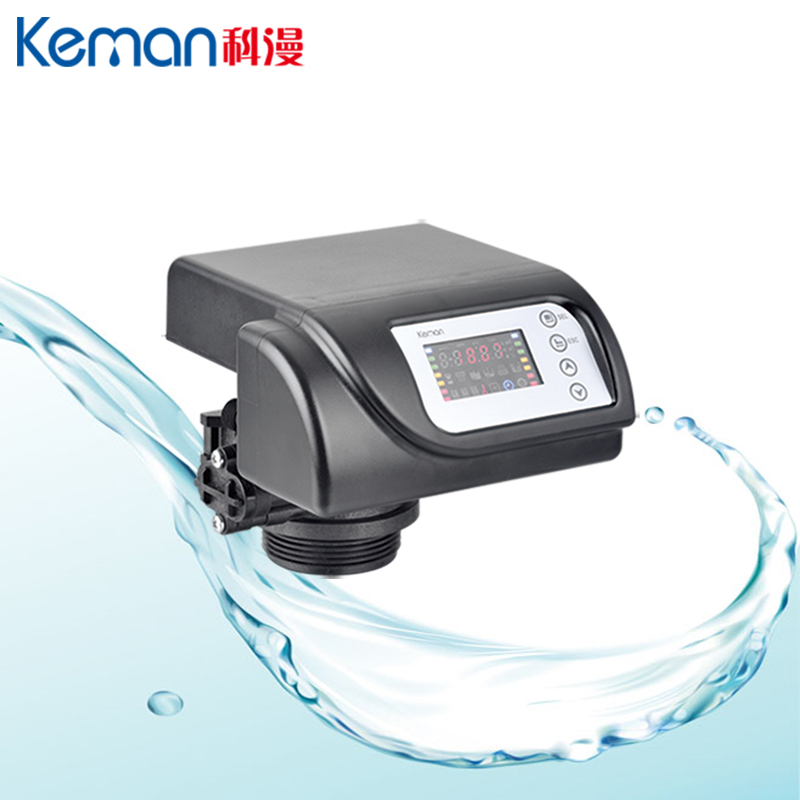

ASDU2-LED 2 ton Automatic softener valve downflow upflow type

Share to:

ASDU2-LED 2 ton Automatic softener valve downflow upflow type

1) Automatic softener valve Downflow &Upflow type.
2) Downflow & Upflow Working Position :
a) Service->Back Wash->Downflow Brine and slow rinse->Refill ->Fast rinse->Service .
b) Service->Back Wash->Upflow Brine and slow rinse->Refill ->Fast rinse->Service .
3) Using ceramic movig valve disk ,small rotation torque
4) Abrasion resistance of sealing surface,outstanding and long -lived deal .
5) It could be operated with pressure directly .

Inlet 1/2'' 3/4'' 1''
Outlet 1/2'' 3/4'' 1''
Drain 1/2''
Base 2-1/2''
Riser pipe 1.05''OD
Water Capacity 2m³/h
Working Pressure 0.15-0.6MPa
Working Temperature 5-50℃

Model:
ASDU2-LED
Brand:
Keman
Code:
84212110
Material: PPO or ABS
Control mode: Automatic
Capacity: 2 ton / hour
Applied range: Water softener machine / industrial softener
Installation Method: Cabinet
Voltage: 220/110
Power: 18W

Quantity:



Inquire Add to Basket

Product Description

Model number : ASDU2-LED :

2 ton Automatic softener valve Downflow &Upflow type .

Product introduce ：

1) Automatic softener valve Downflow &Upflow type .

2) Downflow & Upflow Working Position :

a) Service->Back Wash->Downflow Brine and slow rinse->Refill -> Fast rinse->Service .

b) Service->Back Wash->Upflow Brine and slow rinse->Refill -> Fast rinse->Service .

3) Using ceramic moving valve disk , small rotation torque.

4) Abrasion resinstance of sealing suface, outstanding and long-lived deal .

5) It could be operated with pressure directly.

6) ASDU2 are automatic filter valves, LCD display or LED display .

Model: Automatic softener Valve	ASDU2 -LCD/LED
Working Position	Service->Back Wash->Downflow Brine and slow rinse->Refill -> Fast rinse->Service . Service->Back Wash->Upflow Brine and slow rinse->Refill -> Fast rinse->Service .
Regeneration mode	Automatic type Meter Delay Meter immediate Intelligent Meter Delay Intelligent Meter Immediate Timer by day : 0-99 days Timer by hours: 0-99 hours
Inlet	1/2'' 3/4'' 1''
Outlet	1/2'' 3/4'' 1''
Drain	1/2''
Base	2-1/2''
Riser pipe	1.05'' OD
Water Capacity	2m3/h
Working Pressure	0.15-0.6Mpa
Working Temperature	5-50 °C
Power Supply	AC100-240 / 50-60Hz / DC12V-1.5A
