AF4-LCD
Keman
84212110
| Quantity: | |
|---|---|

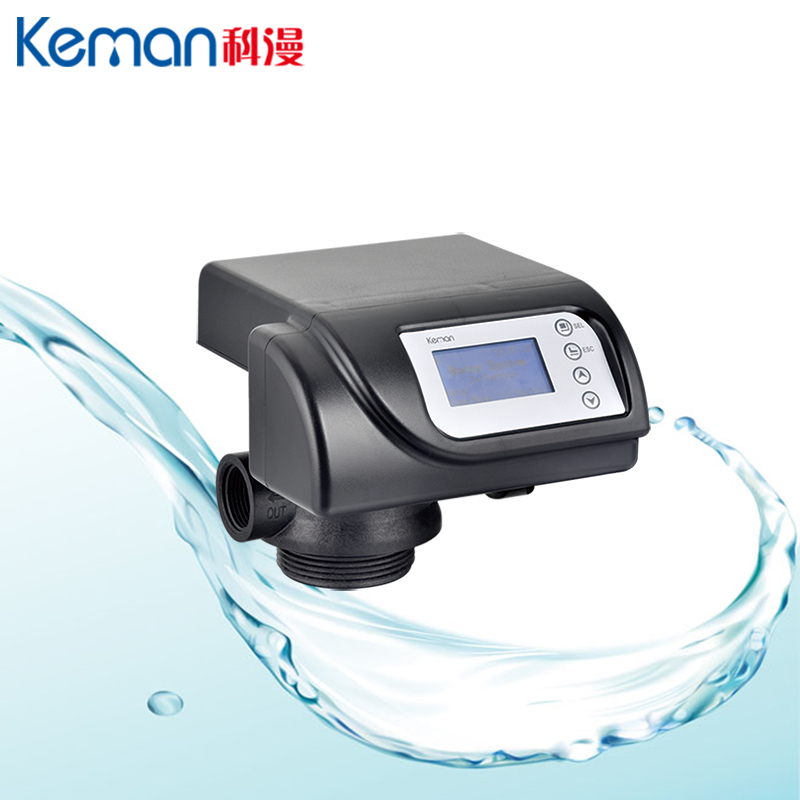

Model number : AF4-LCD :
4 ton Automatic control valve/water filter control valve with different flow rate
Product introduce ：
1) Valve Position : filter -> Back Wash -> Fast Rinse -> Filter
2) Using ceramic moving valve disk , small rotation torque
3) Abrasion resinstance of sealing suface ,outstanding and long-lived deal
4) It could be operated with pressure directly
5) MF2 ,MF2-H, MF4 ,MF4-B, MF10 are manual filter valves , easy operation .
6) AF2 , AF4 ,AF10 are automatic filter valves , LCD display or LED display .
| Model: Automatic Filter Valve | AF2 | AF4 | AF10 |
| Working Position | Filter-> Back Wash-> Fast rinse-> Filter | ||
| Regeneration mode | Automatic | ||
| Inlet | 1/2'' 3/4'' 1'' | 1'' | 2'' |
| Outlet | 1/2'' 3/4'' 1'' | 1'' | 2'' |
| Drain | 1/2'' 3/4'' 1'' | 1'' | 2'' |
| Base | 2-1/2'' | 2-1/2'' | 4'' |
| Riser pipe | 1.05'' OD | 1.05'' OD | 1.5'' D-GB |
| Water Capacity | 2m3/h | 4m3/h | 10m3/h |
| Working Pressure | 0.15-0.6Mpa | ||
| Working Temperature | 5-50° C | ||
| Power Supply | AC100-240V / 50-60Hz DC12V-1.5A 18 W | ||
