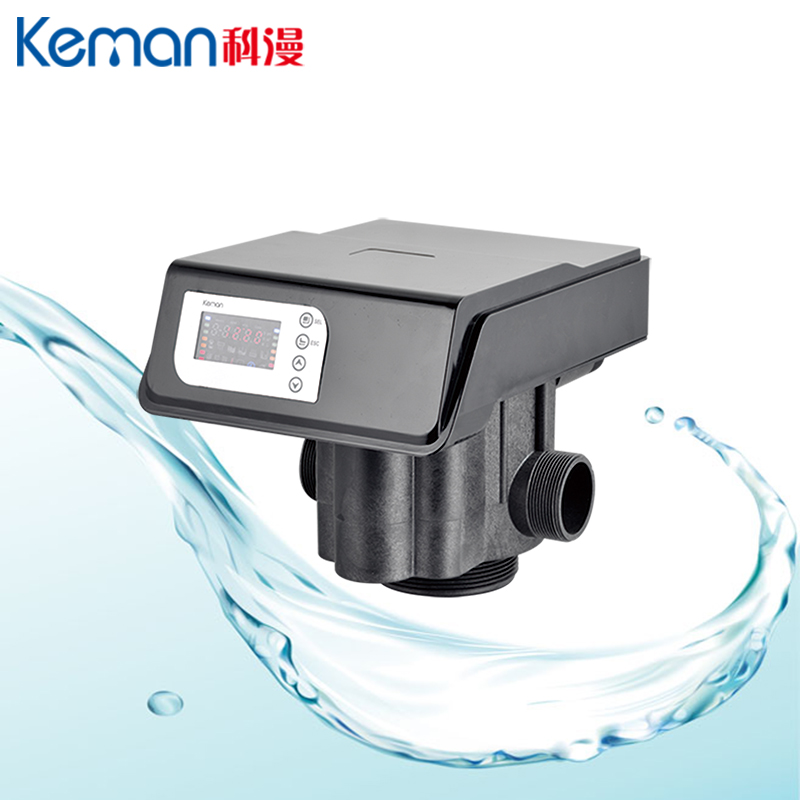

AF10-LED 4 ton Automatic water filter valve with LCD display

1) Working Position : Filter->Back Wash->Fast Rinse->Filter
2) Using ceramic movig valve disk, small rotation torque.
3) Abrasion resistance of sealing surface, outstanding and long -lived deal.
4) It could be operated with pressure directly.

Inlet 2''
Outlet 2''
Drain 2''
Base 2-1/2''
Riser pipe 1.5''D-GB
Water Capacity 10m³/h
Working Pressure 0.15-0.6MPa
Working Temperature 5-50℃

  • AF10-LED
  • Keman
  • 84212110
  • Material: PPO or ABS
  • Control mode: Automatic
  • Capacity: 10 ton / hour
  • Applied range: Central water purification / filter purification
  • Installation Method: Cabinet
  • Voltage: 220/110
  • Power: 18W
Quantity:

Model number :  AF10-LED :
10 ton Automatic control valve/water filter control valve with different flow rate



Product introduce :

1) Valve Position  : filter -> Back Wash -> Fast Rinse -> Filter

2) Using ceramic moving valve disk , small rotation torque.

3) Abrasion resinstance of sealing suface , outstanding and long-lived deal.

4) It could be operated with pressure directly.

5) MF2 ,MF2-H, MF4 , MF4-B, MF10 are manual filter valves , easy operation .

6) AF2 , AF4 , AF10 are automatic filter valves , LCD display or LED display .


Model: Automatic Filter Valve AF2           AF4 AF10
Working Position  Filter -> Back wash -> Fast rinse -> Fliter
Regeneration mode Automatic
Inlet 1/2''  3/4''  1'' 1'' 2''
Outlet 1/2''  3/4''  1'' 1'' 2''
Drain 1/2''  3/4''  1'' 1'' 2''
Base 2-1/2'' 2-1/2'' 4''
Riser pipe 1.05'' OD 1.05'' OD 1.5'' D-GB
Water Capacity 2m3/h 4m3/h 10m3/h
Working Pressure 0.15-0.6Mpa
Working Temperature 5-50 °C
Power Supply AC100-240V/50-60Hz     DC12V-1.5A

Working Principle :
filter valve

  • Applied range
